CC Flasher - Open Source TI/Chipcon SOC Flash programmer



CC Flasher is an open source supported flash programmer for Chipcon/TI RF SOC chips. It currentlly supports CC2430 802.15.4/ZigBee, CC2510, CC2511, CC1110 SOC programming under Linux and Windows.

Program TI/Chipcon SOC under Linux and Windows

Our open source flash programming software support Linux and Windows. So you have the freedom to develop under the operation system of your choice.

Software and drivers were tested under:

• Ubuntu 7.10/8.04/8.10/9.04
• Windows XP/Vista/7 RC1
• Fedora 9

Support for CC2430/31 and CC2510/11 chips is well tested. Support for other chips is pending(should work, since CC111x core is the same as CC251x, but not tested).

• CC2430
• CC2431
• CC2510
• CC2511
• CC1110
• CC1111

Open source CC2430 flash programmer

The CC Flasher CC2430 flash programming software is published under Open Source license. So you don’t have to wait for us to add new feautures or to support new operating systems.
We belive that you the developer should have all the freedom while developing the next hit product.

CC Flasher program and firmware are available from SVN on sourceforge,

Buy

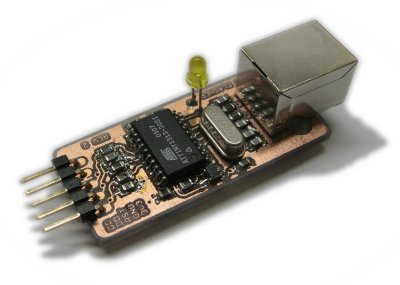

The programmer design is simple but it requires an attiny2313 programmer.

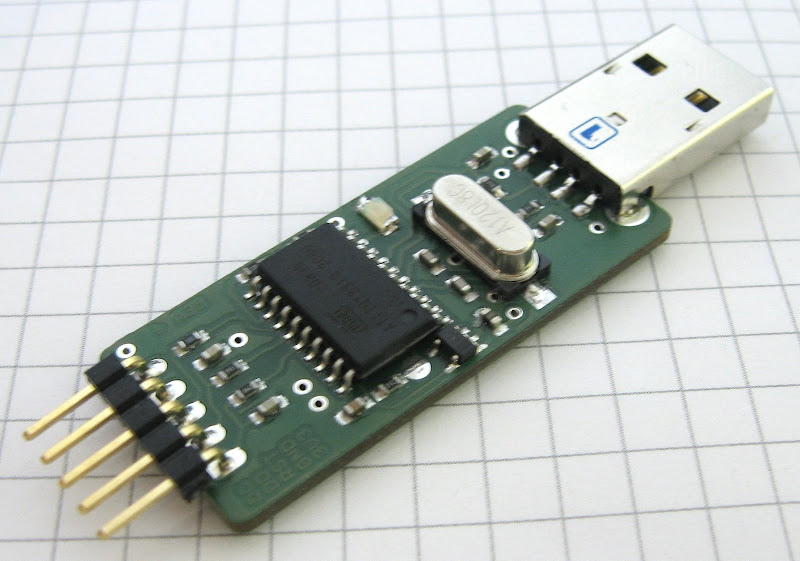

We made batch of the progremmers avaiable for order. Price is 35EUR + 5€ shipping.
For order any pay with you credit card click the Buy Now button. For other forms of payment contact our sales at sales@modula.si.

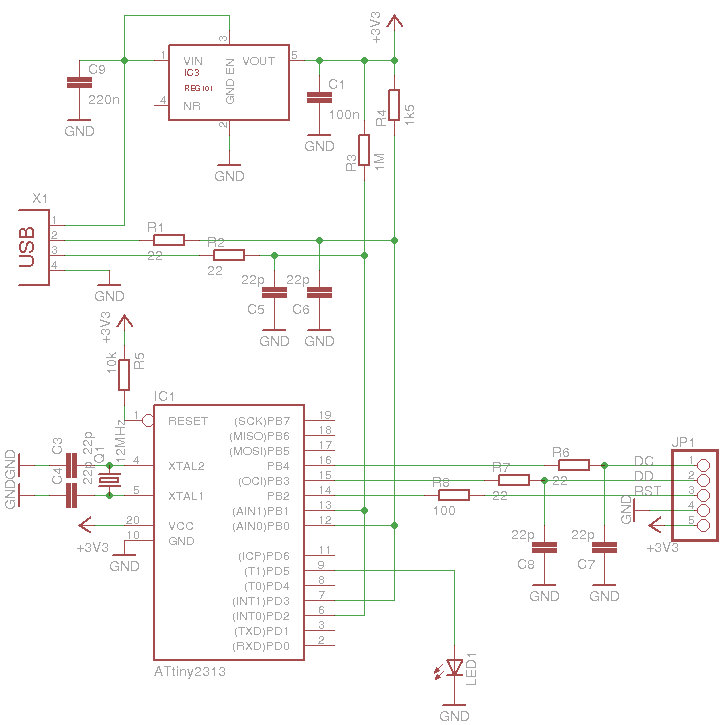

Or build one yourself

Firmware is available from the SVN on sourceforge,

Software

Software is available in source code form for linux and binary for windows on sourceforge,

The easiest way for windows users is to install drivers and software is the all in one pack.

Support

User manual
Software and drivers

If you have any questions send us and email to info@modula.si, call +386 31 392 047 or fill the form below.
